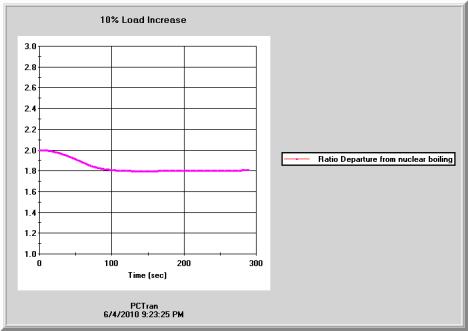

Ten-percent Step Load Increase

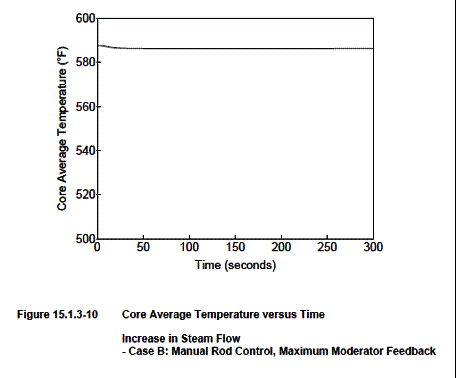

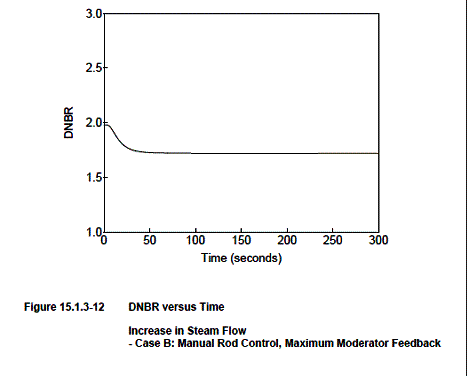

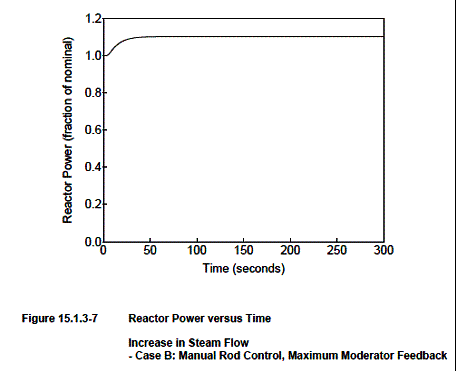

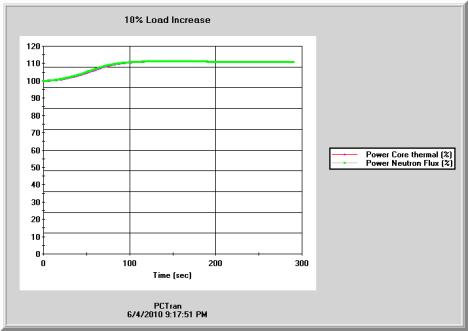

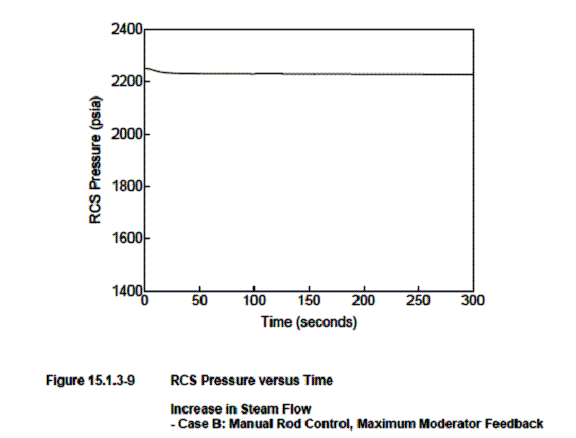

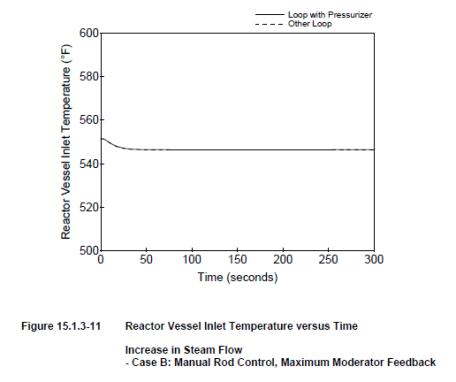

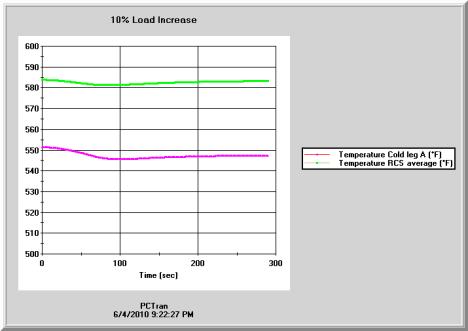

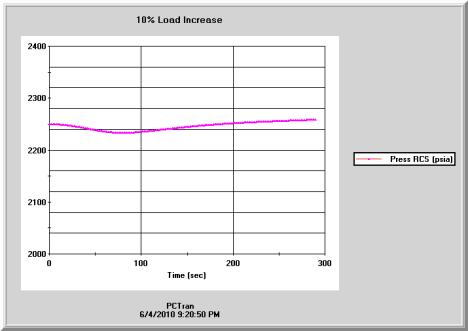

The transient analyzed is of maximum moderator feedback and manual control.  This run was conducted by setting power demand = 110%. The pressurizer heaters are disabled. otherwise they would maintain the RCS pressure constant. The results are in good agreement with the design document.

T2

t4



t6

t8

t10



t12



t14
t16
t18
