Inadvertent Opening of a SG Relief Valve

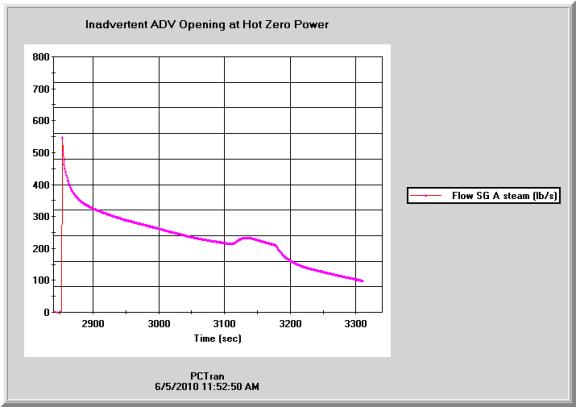

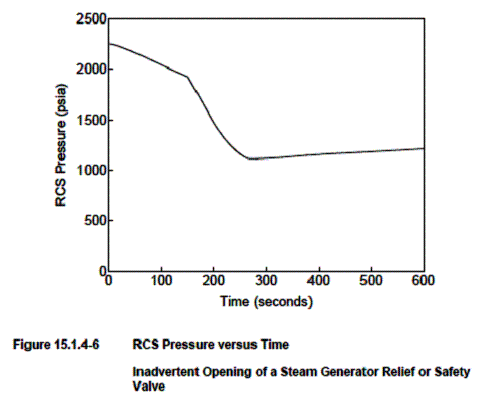

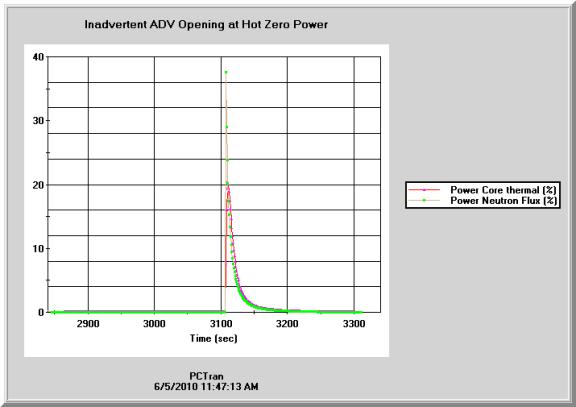

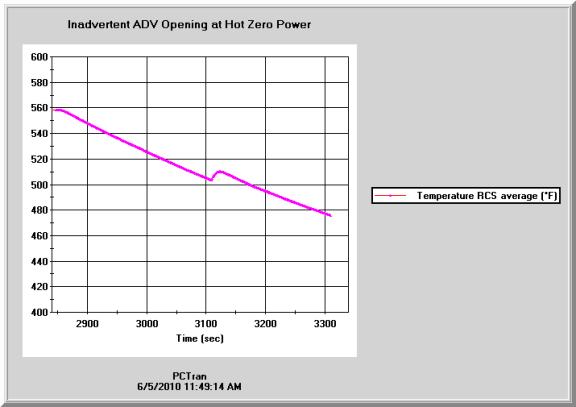

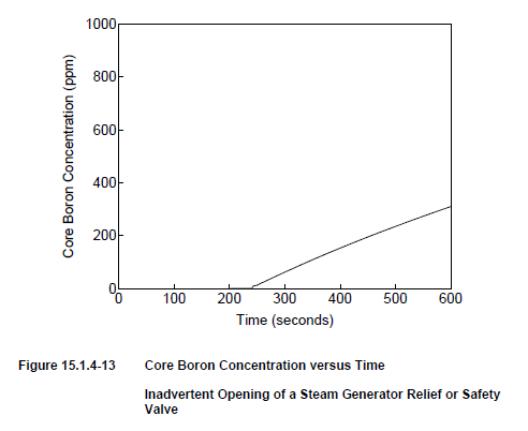

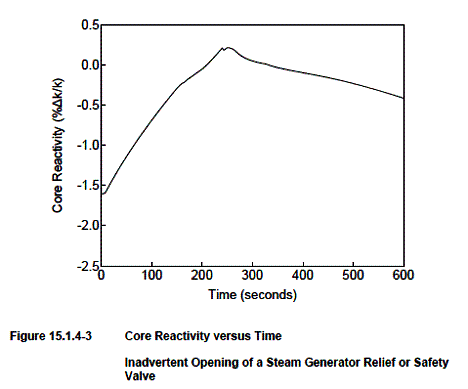

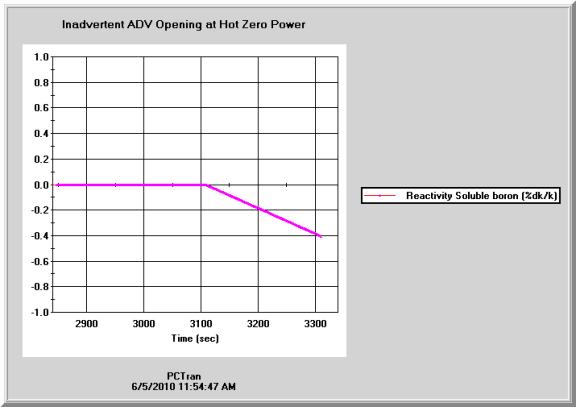

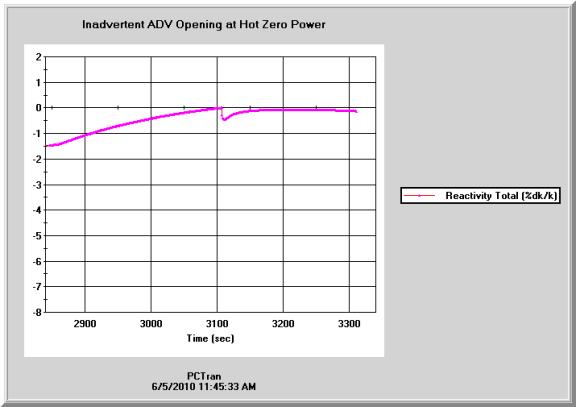

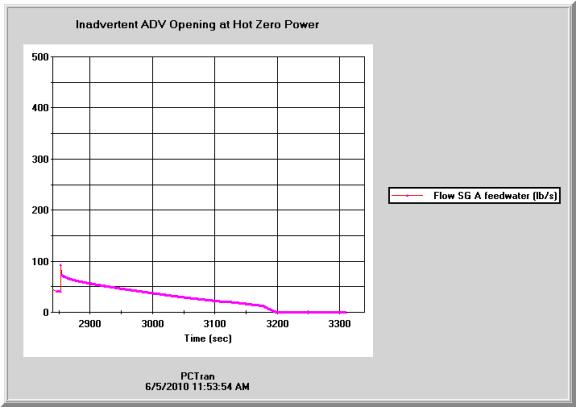

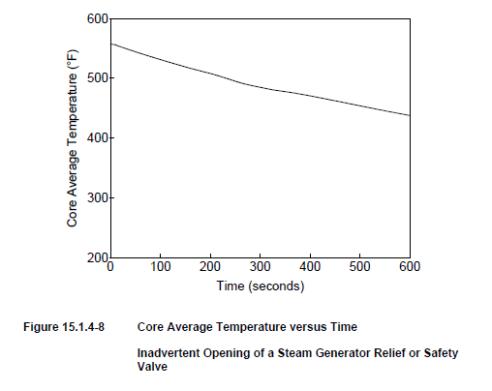

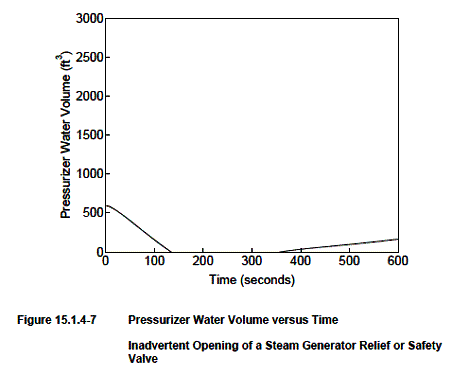

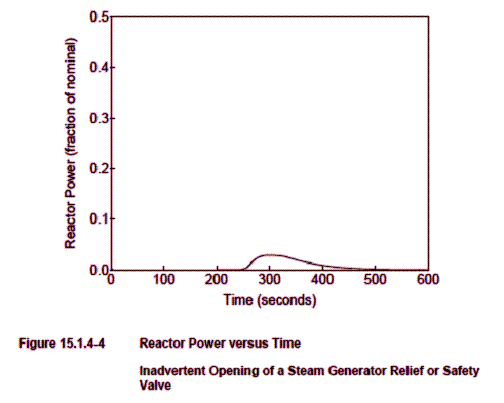

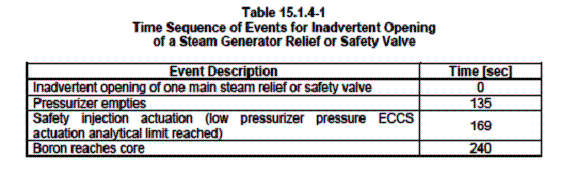

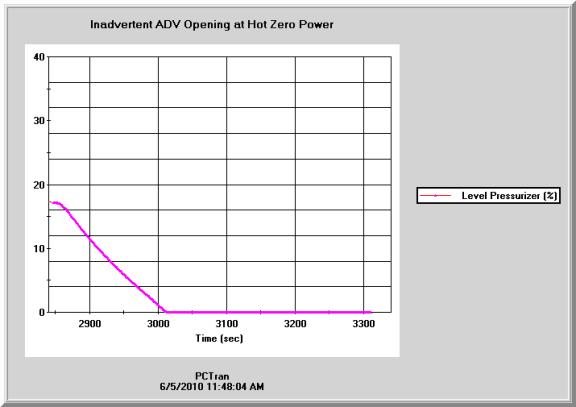

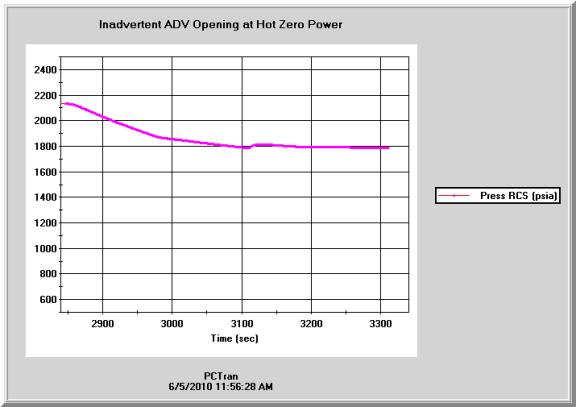

IC8 was created for hot zero power of RC pressure near 2200 psia and Tavg 560ºF.  By opening the left side single ADV and lock it open, a flow rate about 500 lb/s is discharged from loop A.  It overcools the RCS.  As a result, moderator temperature reactivity causes return to criticality and a power surge.  PCTRAN’s result (about 20% peak) is greater than the MHI prediction of 5%.   Depressurization in the RCS initiates HSPI and its boron reactivity suppresses the total reactivity back to sub-critical.



SR2





sr4
sr6
sr8



sr10
sr12



sr14
sr16

sr18

sr20

sr22
sr24
sr26
sr28

sr30

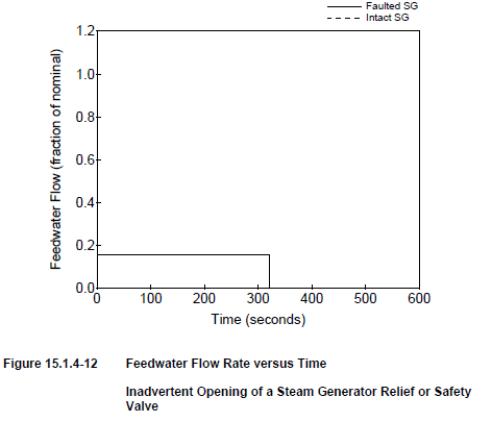

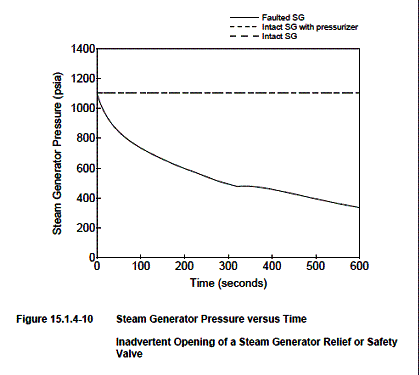

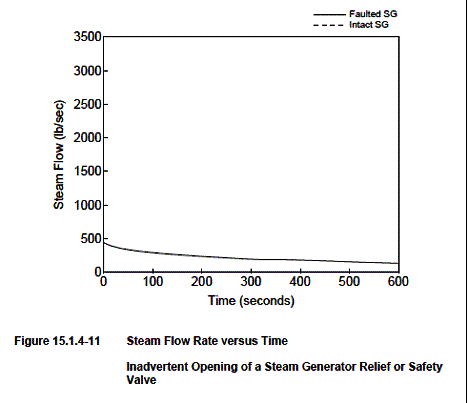

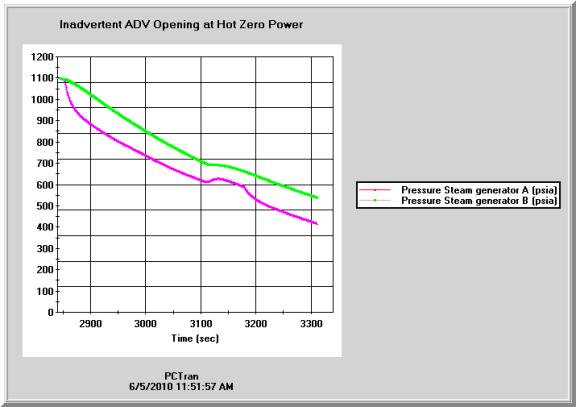

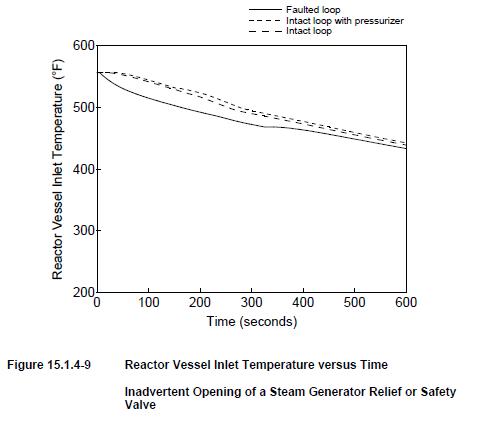

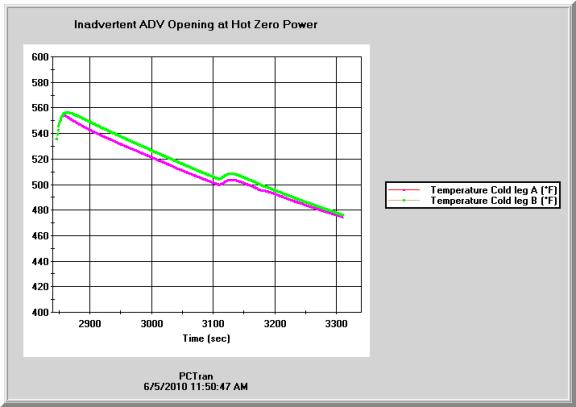

Apparently MHI’s analysis has assumed that all MSIV’s were closed so the intact side not affected by the ADV opening.  We assumed that they were still open so both decreased
