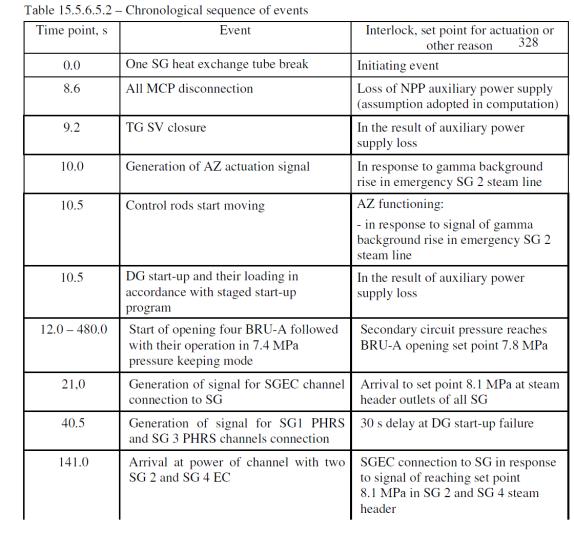

Time, sec

Event

0

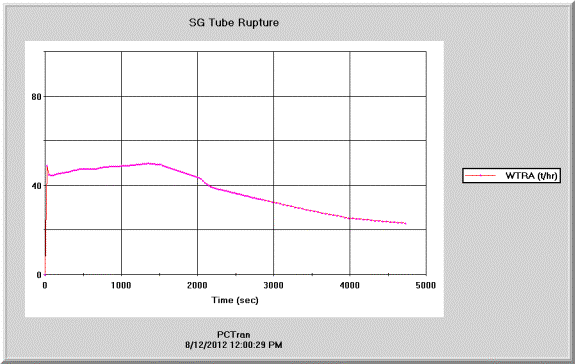

MF10 100% tube rupture, 50.4 t/h (14 kg/s)

10

turbine trip, trip all MCP's, reactor scram

20 - 480

start SGEC at "A" ruptured side

40

start "B" PHRS

480

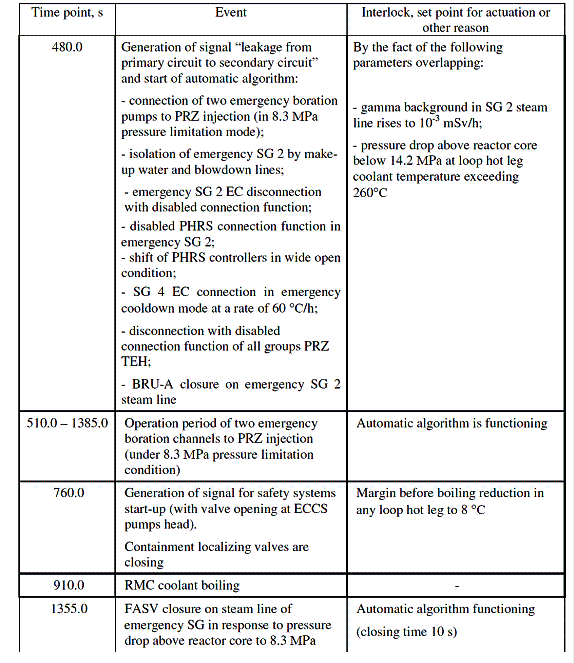

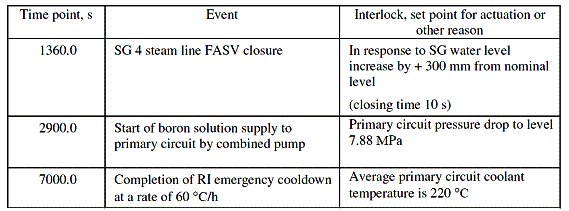

SG 4 SGEC start 60C/h cooldown; disable PRZ TEH (heaters)

1350

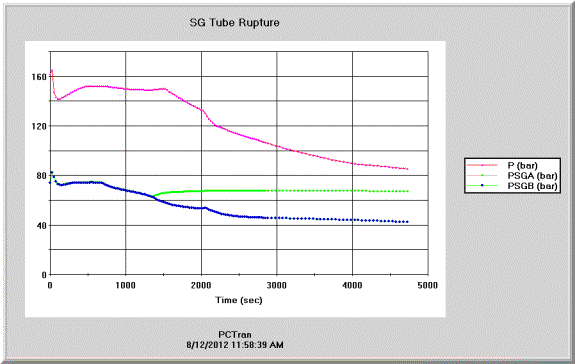

Close FASV "A" side; use aux. Spray to depressurize the primary
