Inadvertent Operation of PRHR

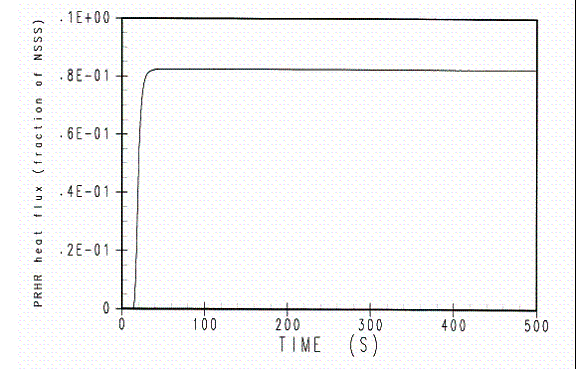

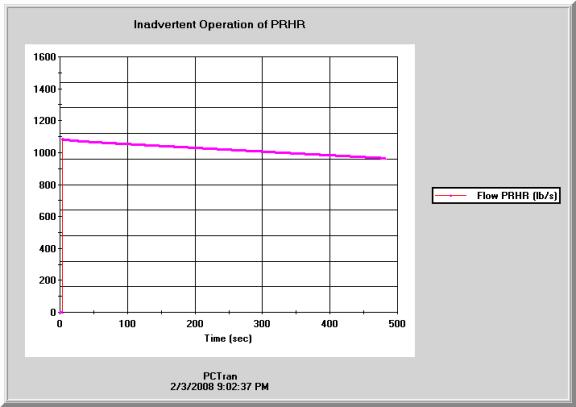

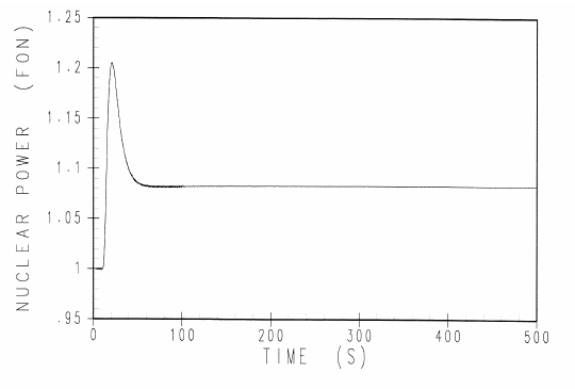

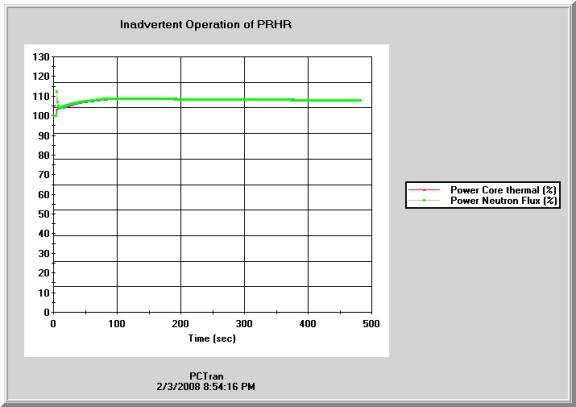

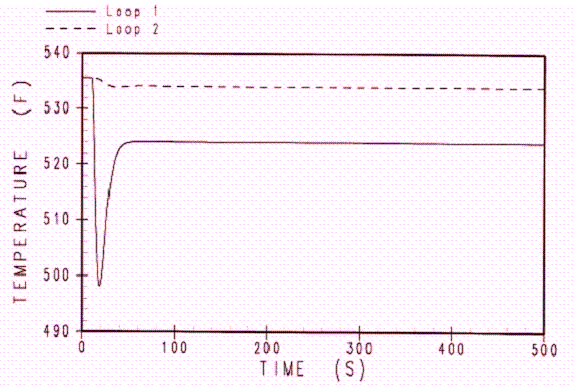

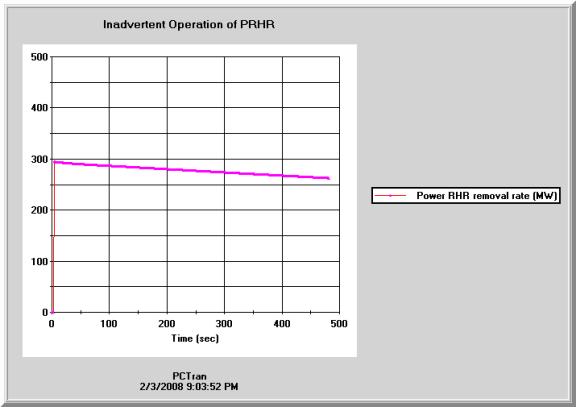

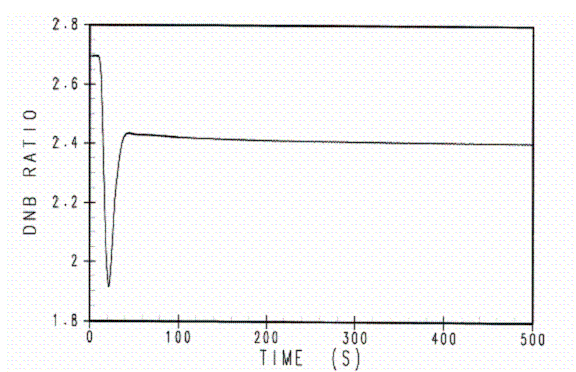

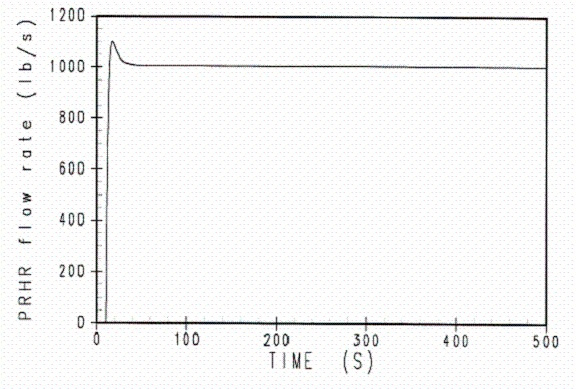

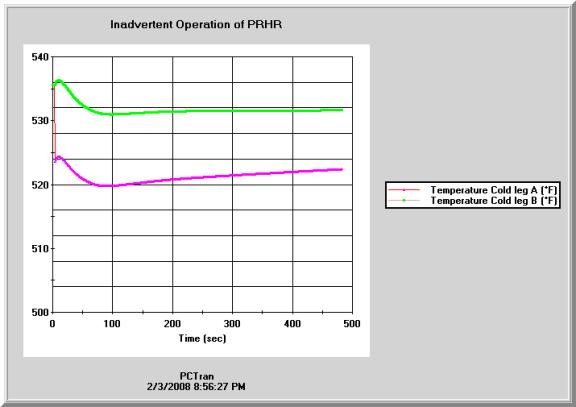

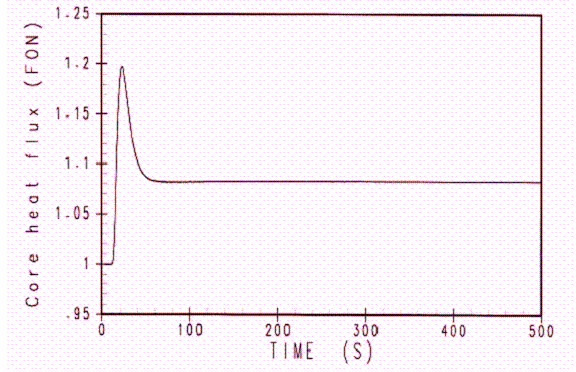

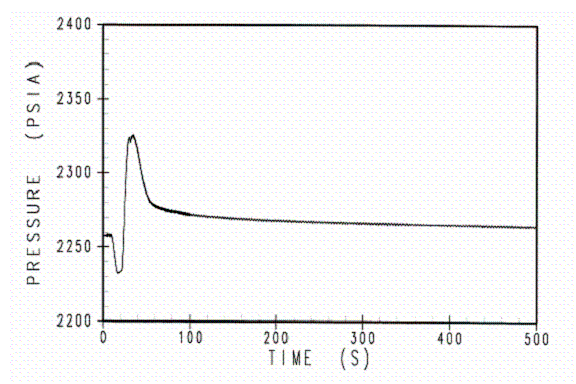

Start of the PRHR system during power operation puts cold  water into the connected cold leg.  When the water enters into the core the negative moderator temperature effect surges the power significantly. Later it becomes stabilized at a higher power corresponding to the PRHR heat removal rate (about 8% full power).



PRHR2
prhr4prhr6

prhr8prhr10

prhr12prhr14





prhr16prhr18

prhr20prhr22


prhr24prhr26
