Inadvertent Opening of a Pressurizer Safety Relief Valve

IPORV2

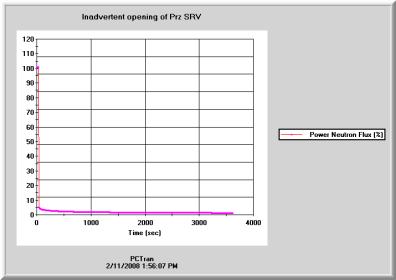

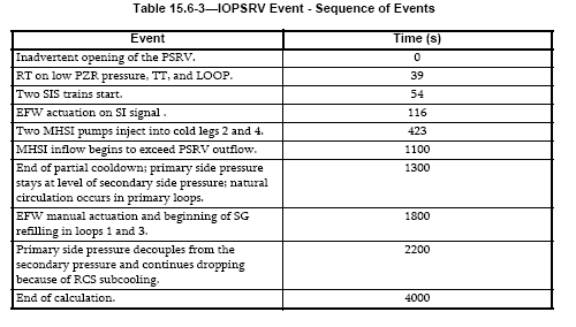

After opening of the PSRV, reactor trips on low RC pressure and the turbine trips.  MHSI starts and MSRT depressurizes the SG by a rate 180º F/hr till the SG pressure is 852 psia.









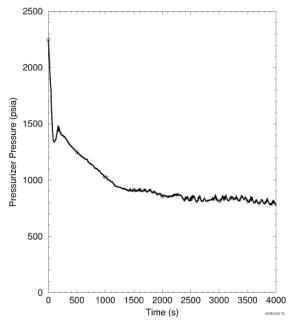

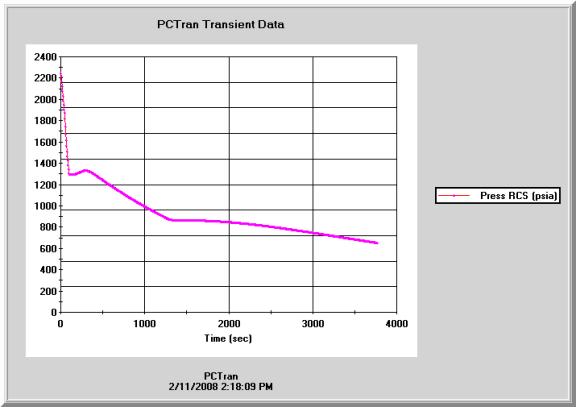

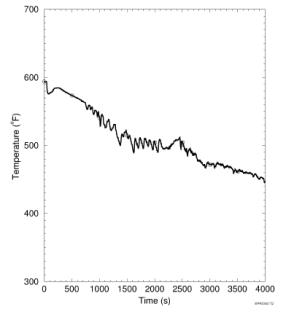

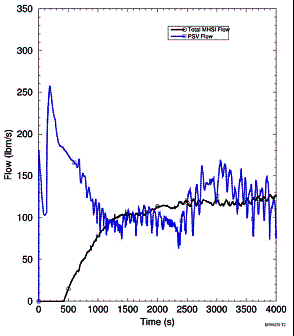

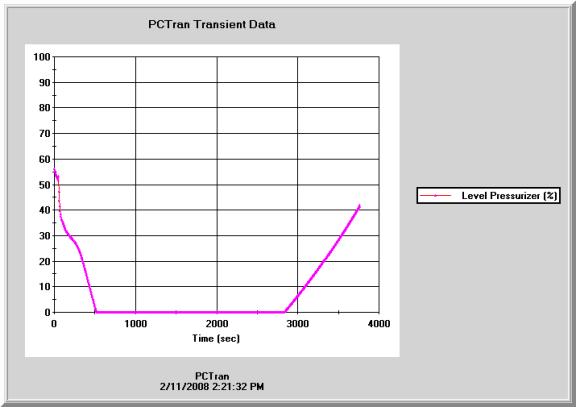

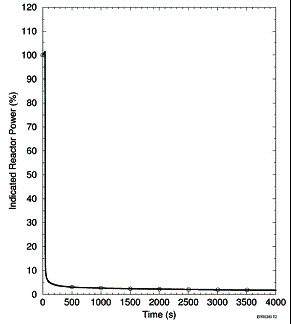

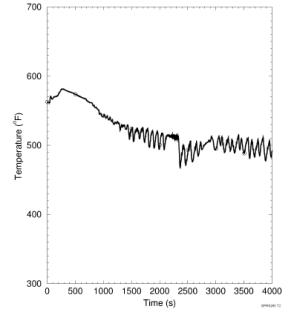

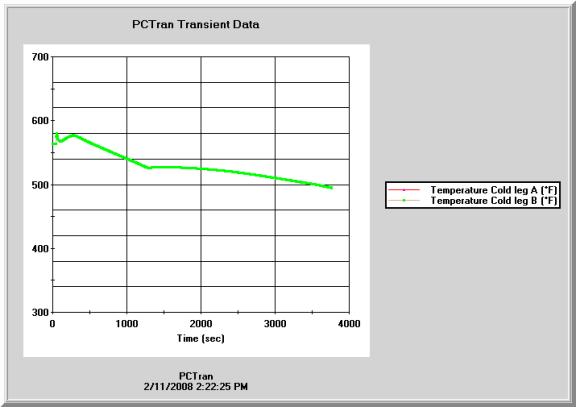

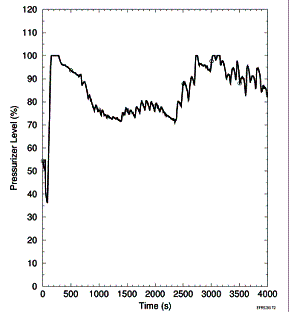

IPORV4IPORV6

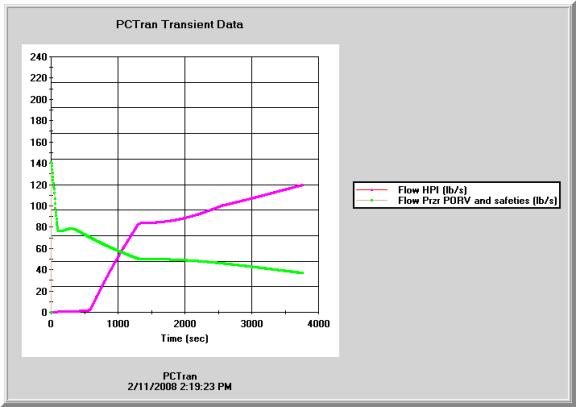

IPORV8IPORV10

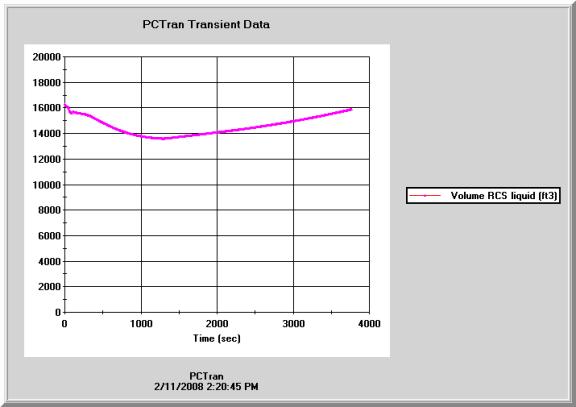

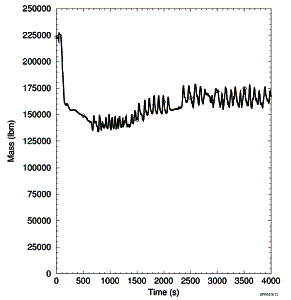

IPORV12IPORV14

IPORV16IPORV18

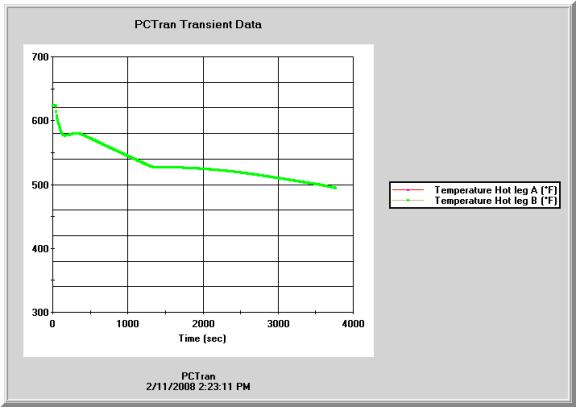

IPORV20IPORV22


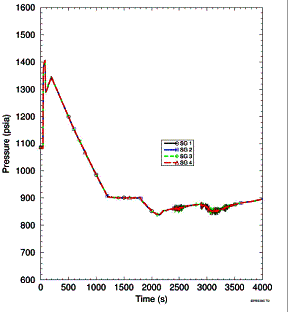

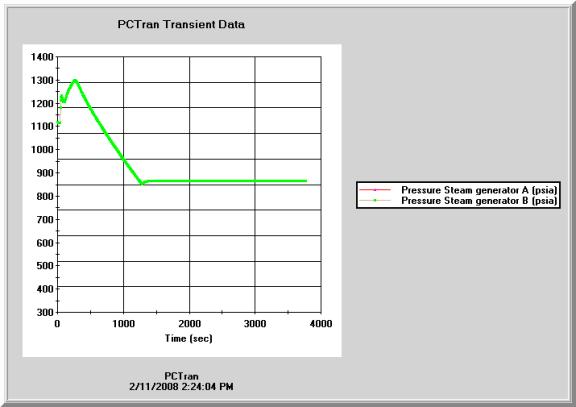

IPORV24IPORV26

IPORV28IPORV30

IPORV32IPORV34
