Loss of Core Flow

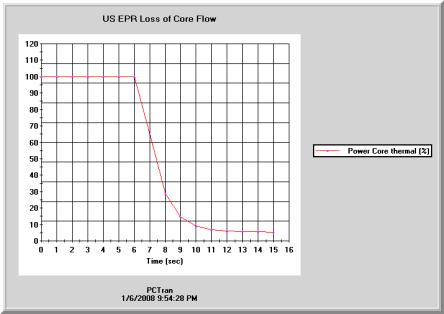

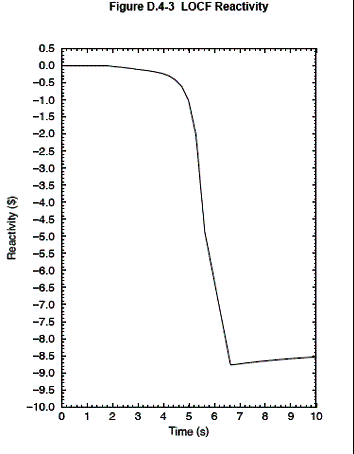

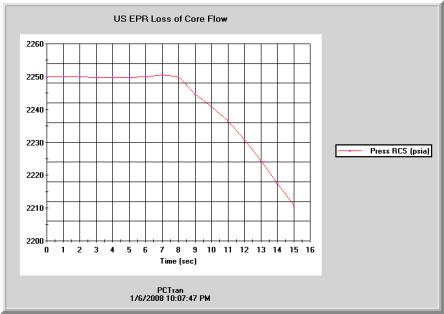

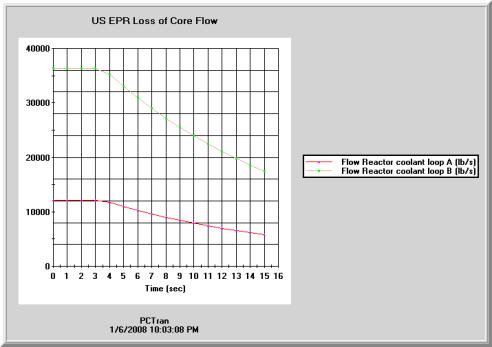

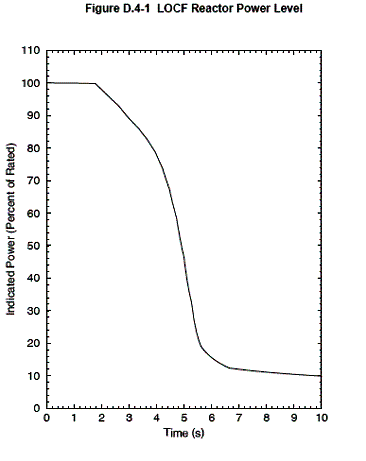

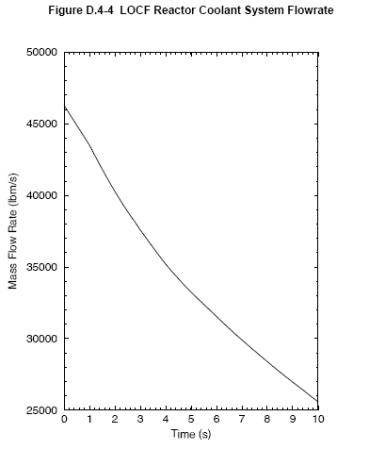

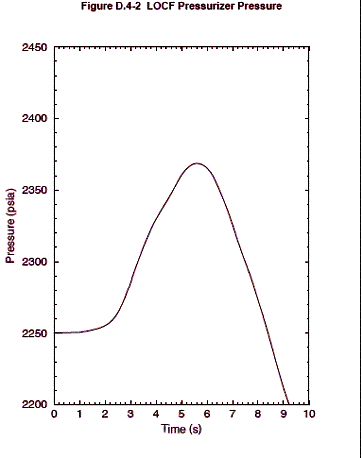

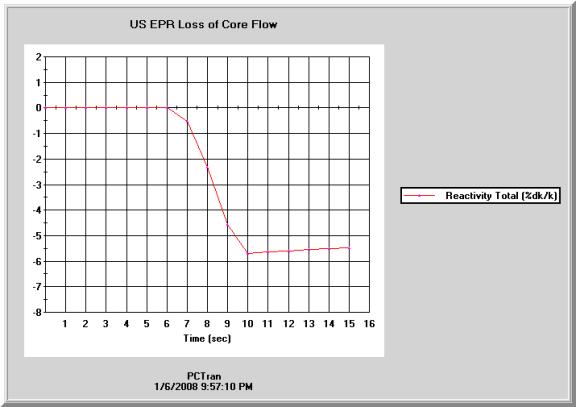

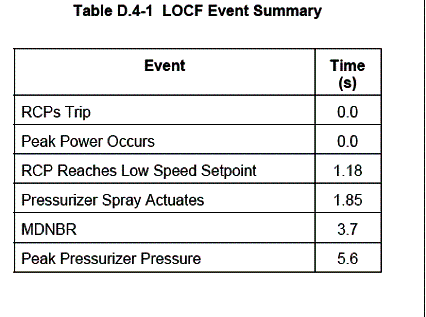

The loss of core flow transient is initiated simply by trip all pumps.  Flow coastdown, reactor trip and reactivity change are very much similar to the Areva document.  One exception is the RC pressure rise before reactor trip is very limited.

LOCF2



LOCF4LOCF6

LOCF8LOCF10


LOCF12LOCF14

LOCF16LOCF18
