Advanced Boiling Water Reactor

Previous Next

Simulation Control

  • Run/freeze
    The simulation can be stopped (Freeze) and started (Run) by the following methods. Controls are active regardless of the state of the application. The status of the application is displayed as text (“Freeze”, “Run”) in the first panel on the Status Bar.
    1. Code Control/Run and Code Control/Freeze commands on the Main Menu.
    2. Run and Freeze command buttons on the Toolbar.
    3. Atom symbol on the Status Bar.
  • Mimic

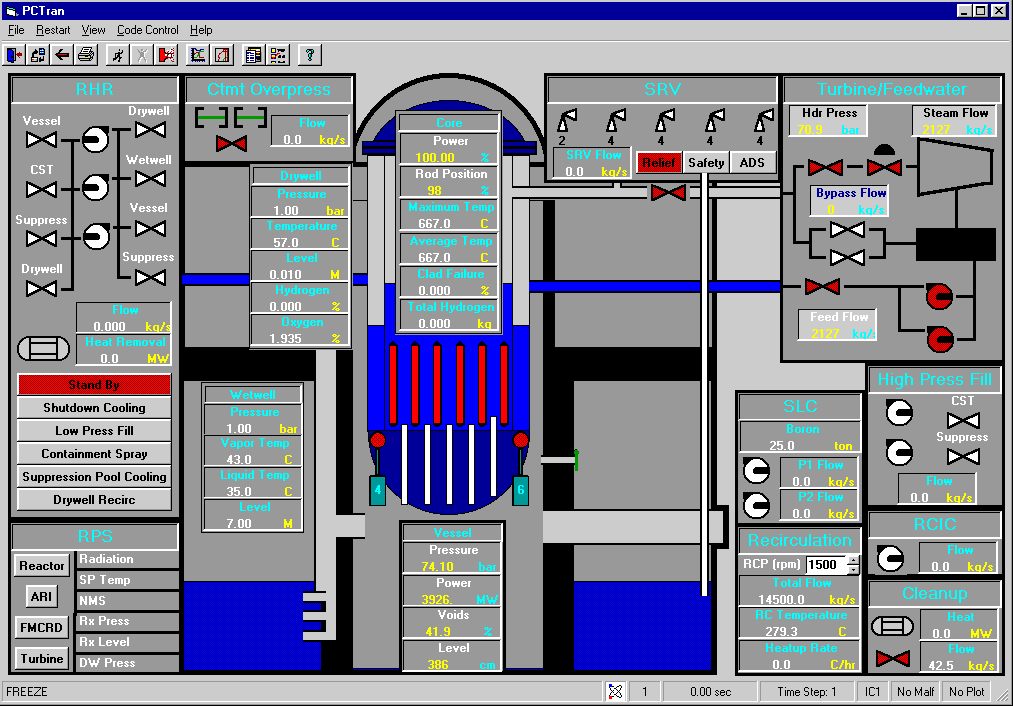

    The mimic is a graphical representation of the Nuclear Steam Supply System (NSSS) and its associated controls. The Mimic for the ABWR designed for the Taiwan Power Company's Fourth Nuclear Power Project Lungmen is shown below.

     Plant mimic display
    Click for enlarged image
